RT3300 Under Vehicle Surveillance System is the fixed solution for the fully identification of threats or modifications to a vehicle’s undercarriage. It can quickly and accurately identify threats , contraband objects and stowaway who are hidden at the bottom.

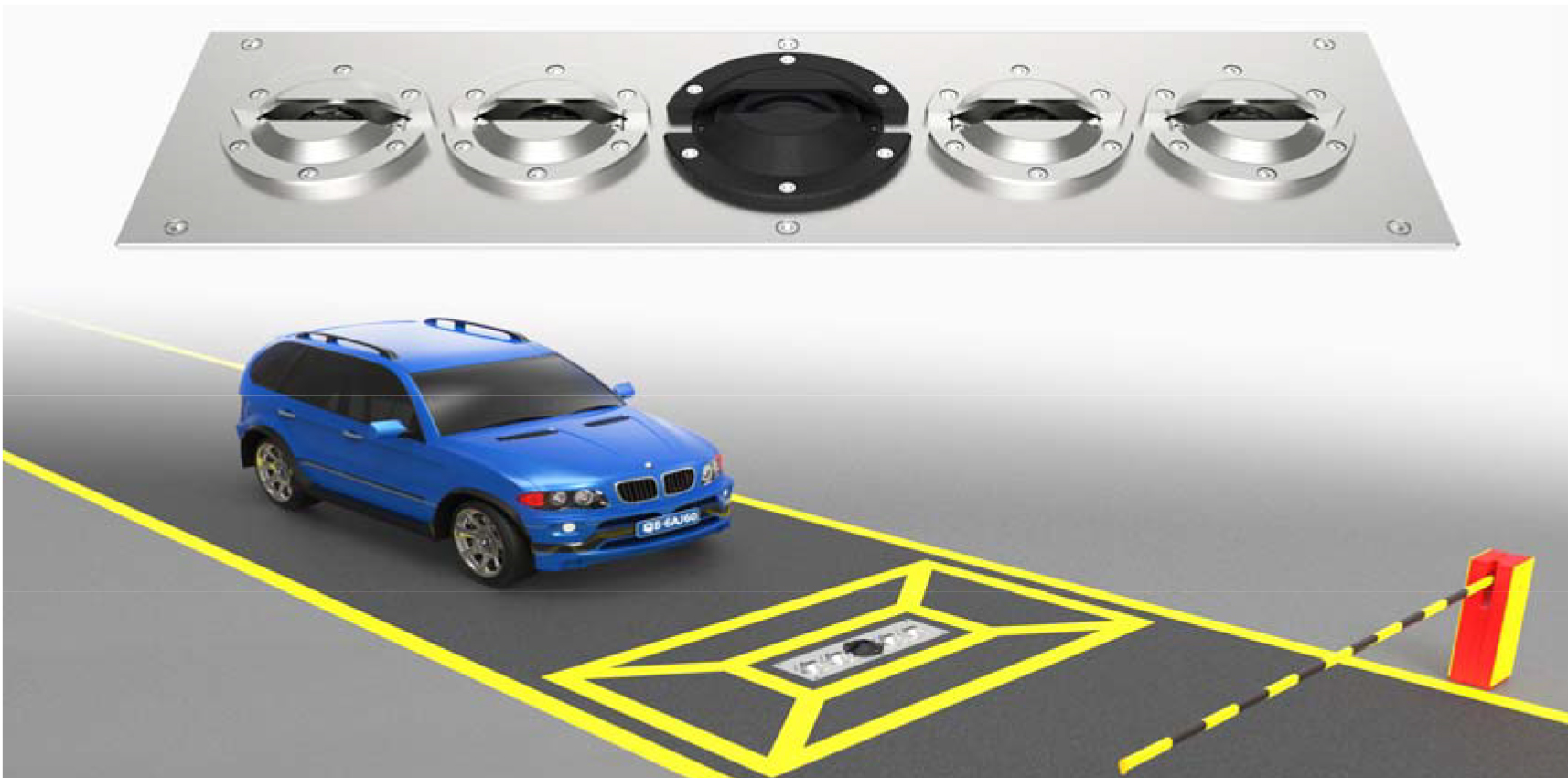

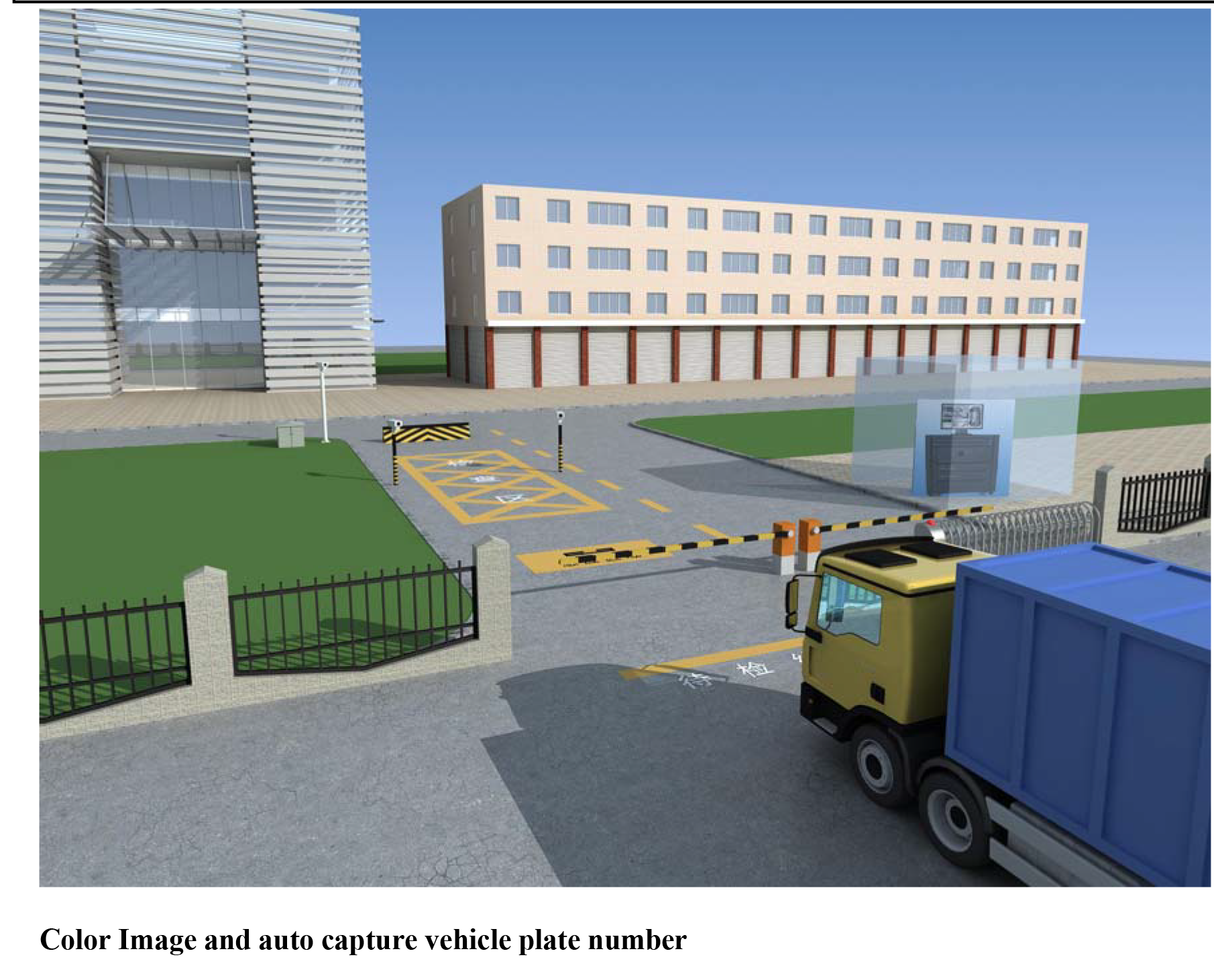

Vehicles drive over the embedded scanning units while systems compile high-resolution images of a vehicle’s undercarriage to create the vehicle’s “fingerprint." It’s easy to see any threatening objects that may be hidden on top of an axel or crossbeam. An overview camera captures the normal view of car and displays this on the high-resolution monitor . RT3300 adopts embedded installation way.
RT3300 Under Vehicle Surveillance System is strictly designated on the conception of maintenance free and application in all weather with IP68 water-proof grade. These make sure the system can work steadily in any climate.
RT3300 adopts advanced digital liner scanning imaging technology, with high image definition and resolution to ensure the complete image without omission.

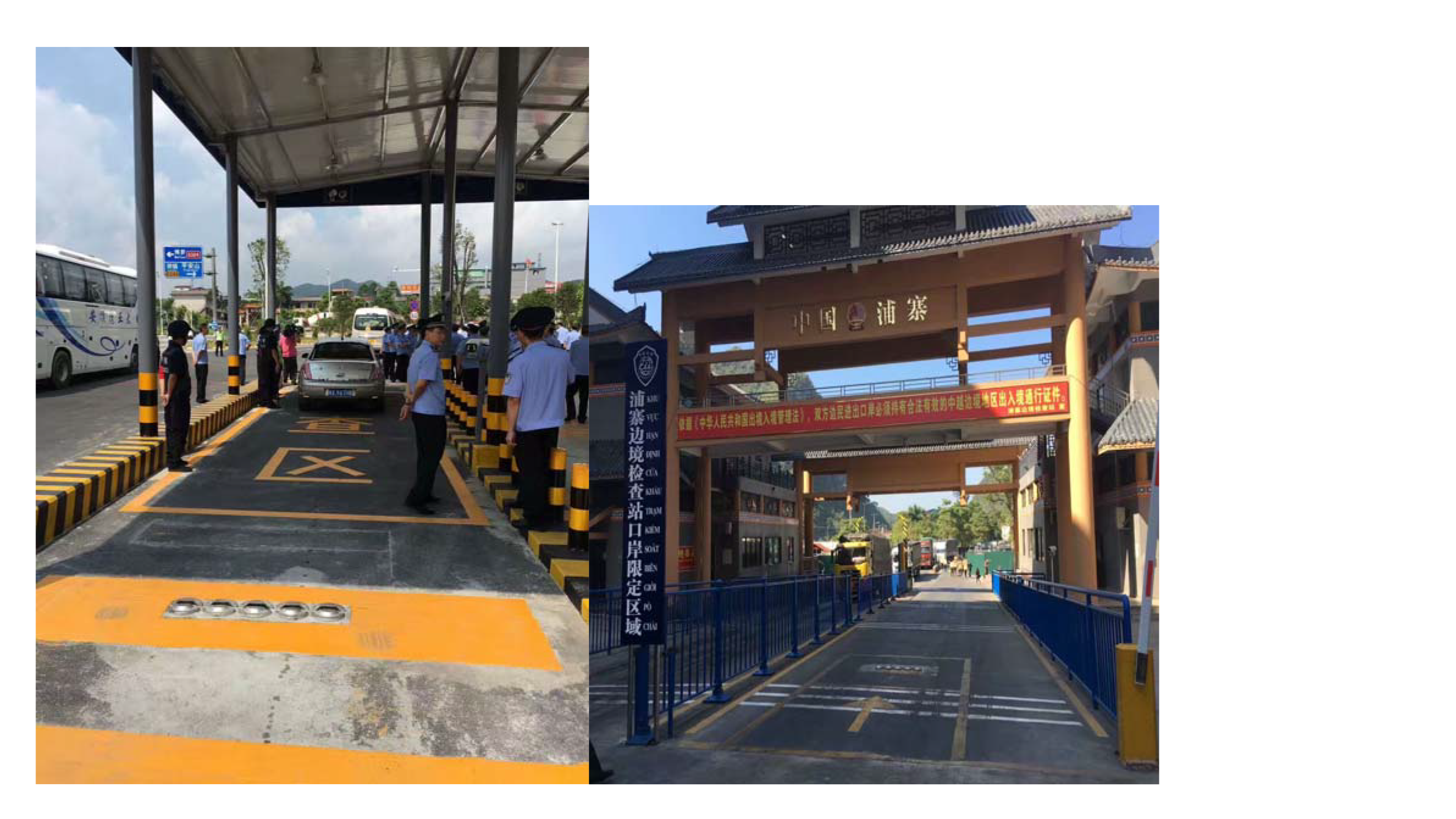

Fixed Under Vehicle Surveillance/Inspection System (UVSS/UVIS) Embedded type, stable performance, high resolution image Suitable for parking lot, fixed location Applicable to variety of vehicles, wide vision Greatly improved vehicle safety inspection speed and accuracy.
RT3300 Under Vehicle Surveillance System is the fixed solution for the fully identification of threats or modifications to a vehicle’s undercarriage. It can quickly and accurately identify threats , contraband objects and stowaway who are hidden at the bottom.
Vehicles drive over the embedded scanning units while systems compile high-resolution images of a vehicle’s undercarriage to create the vehicle’s “fingerprint." It’s easy to see any threatening objects that may be hidden on top of an axel or crossbeam. An overview camera captures the normal view of car and displays this on the high-resolution monitor . RT3300 adopts embedded installation way.
RT3300 Under Vehicle Surveillance System is strictly designated on the conception of maintenance free and application in all weather with IP68 water-proof grade. These make sure the system can work steadily in any climate.
RT3300 adopts advanced digital liner scanning imaging technology, with high image definition and resolution to ensure the complete image without omission.
Fixed Under Vehicle Surveillance/Inspection System (UVSS/UVIS) Embedded type, stable performance, high resolution image Suitable for parking lot, fixed location Applicable to variety of vehicles, wide vision Greatly improved vehicle safety inspection speed and accuracy.

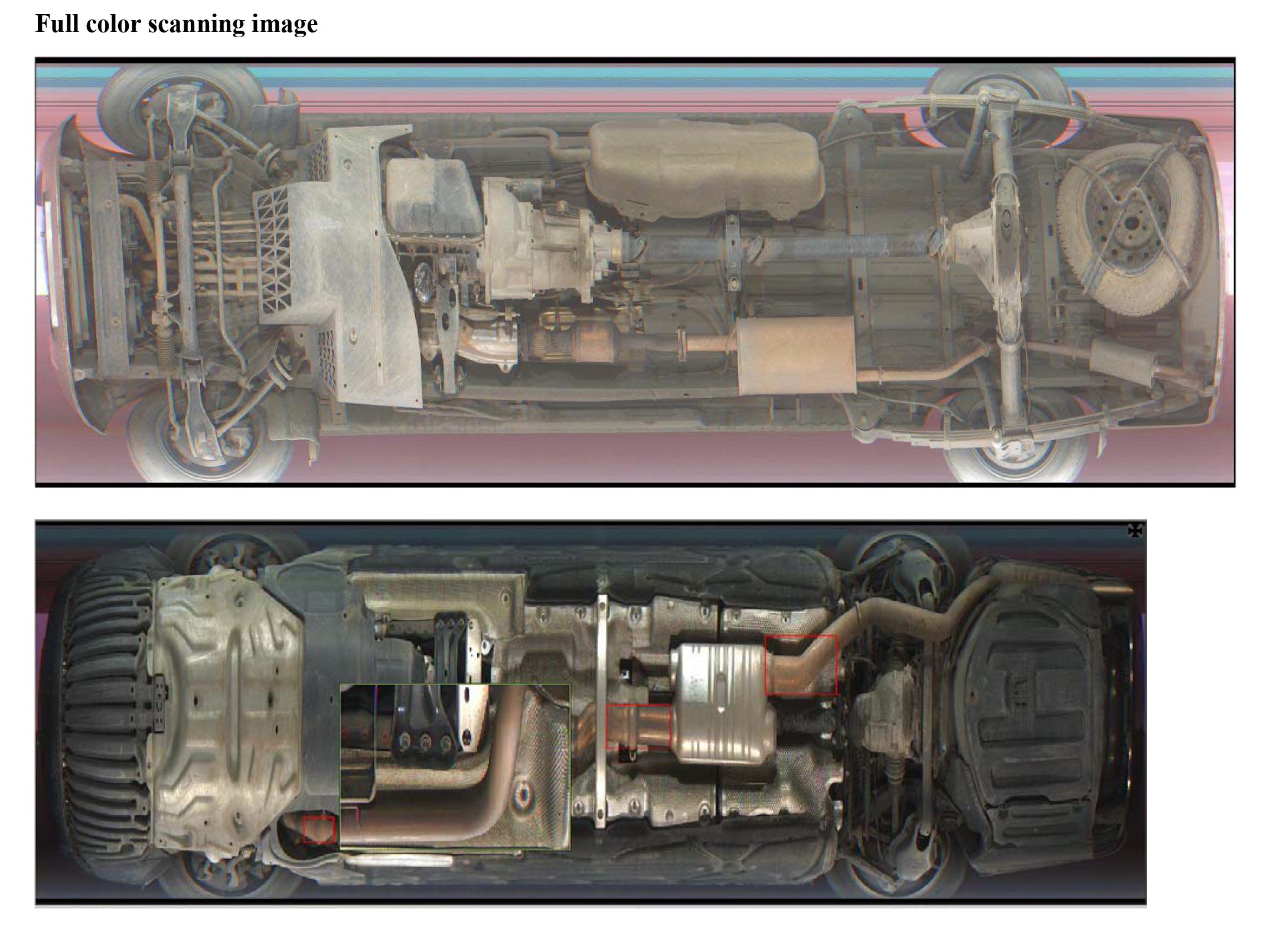

√ Auto digital line scan, high-resolution undercarriage imaging.
● Decision Response Time: 2-3 seconds (the length of time from when the vehicle clears the scanning
platform until the system automatically identifies the vehicle, automatically searches the under carriage
and displays the decision results on the operator terminal)
● Applicable to variety of vehicles, wide vision :
Max Vehicle Length: 25 meters standard – longer vehicles can be scanned requires setup.
Vehicle Width: 2.75 meters standard – wider vehicles w/optional settings.
√ Test will be completed during the vehicle maneuvers without stopping, adapted to different speed.
√ Undercarriage image can be stored, retrieved, searched or compared with other images.

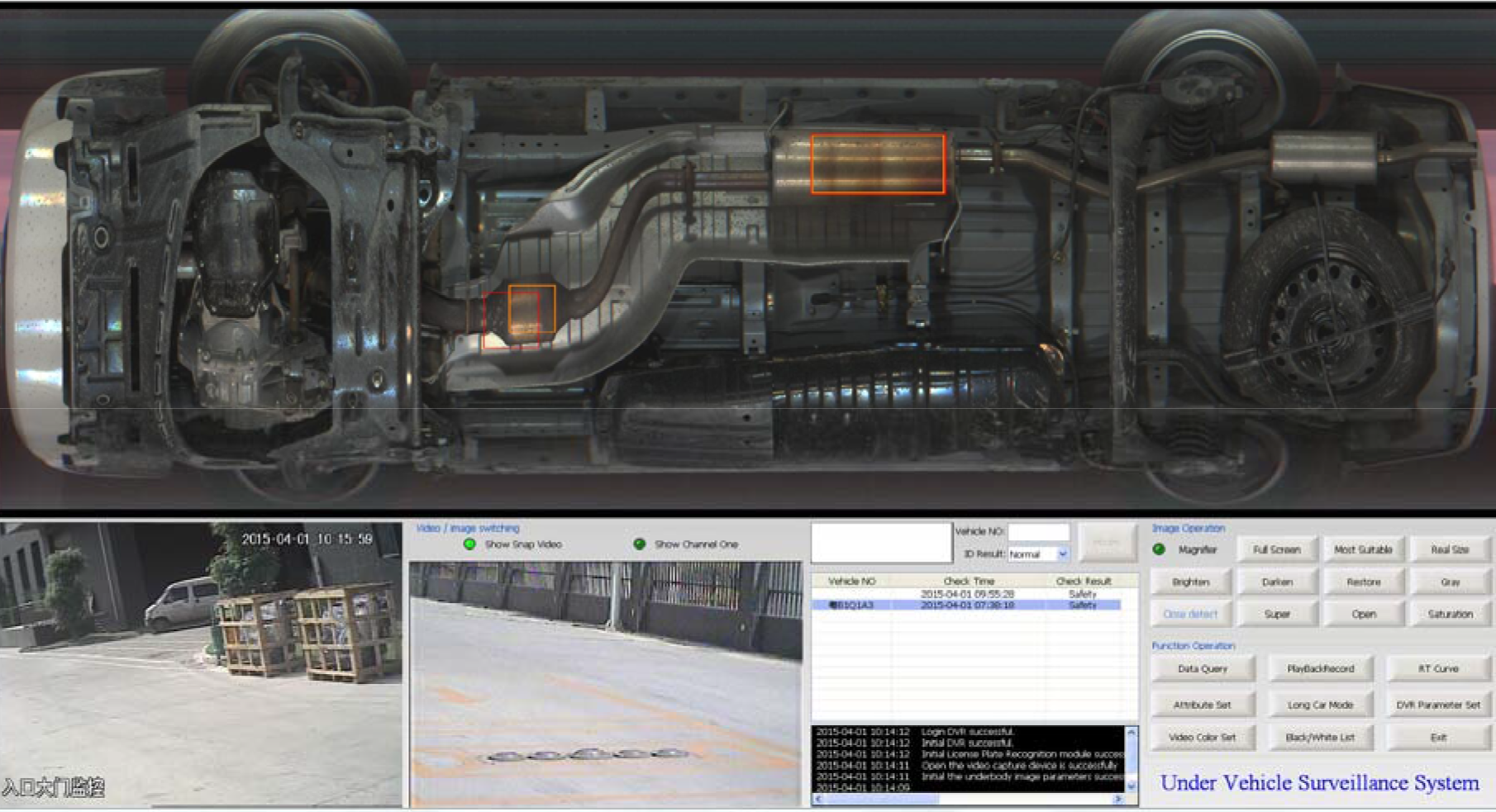

√ Whole image display ion monitor, can zoom, playback, sign in the images, stretching and cutting, etc
√ Multi entrance management model, and statistics of entering and exiting vehicles.
√ Flexible detection process can be made on site to satisfy the needs of various work conditions.
√ Image monitoring, video recording for different scenario
LED Illumination: LED light for clear image in day and night
1) Power Supply: 24VDC, 320W2) LED light service life: 50,000 hours
3) Operating Temperature Range: -25 ℃ to +60 ℃
4) Illumination : 0.01 Lux
Advantage of UVSS:

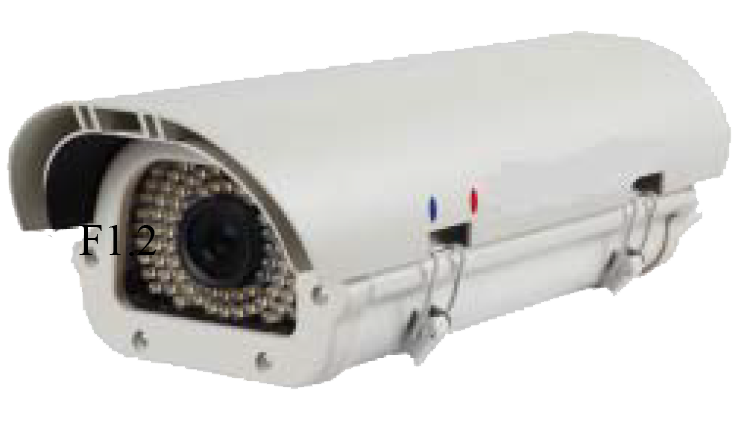

Vehicle Plate Number Capture Camera : Strong Light Inhibition+ Nigh vision, IP67 water proof and antifog
Specification:
1. The imaging element,1/2.8″SONY Exmor , 2.1 Megapixel
2. Resolution: Full HD/1080P(1920x1080) + Full D1
3. Minimum illumination: color：0.05Lux at F1.2 / special light condition：0.001Lux at F1.2
4. Compress standard: H.264 Main Profile @ Level 4.1 / Motion JPEG
5. Multibit Rate:FHD/1080P + Full D1 + CVBS
6. video flowing: multi H.264 and M-JPEG
7. Support 16:9 display format
8. 3 D Noise Reduction: Reduce every frame image noise so that the image appears more clearly
9.Horizontal resolution : >1000TVL(1920x1080 pixels)
10. 1-30M adjustable IR distance
11.Save: support PC, NVR, TF card
12.Network: network port: 1 unit RJ45, 10/100M; 1 unit BNC port, 1pc power input port
13. Network protocol: IPv4, TCP/IP, UDP, HTTP, DHCP, RTP/RTCP/RTSP, FTP, UPnP, DDNS, NTP, IGMP ICMP, etc
14. Operation temperature:-10℃—50℃
15. Dimension:（L）390mm×（W）140mm×（H）143mm
16. Power supply :DC12V
17. Lens: f= f=6mm/8mm/12mm 3MP

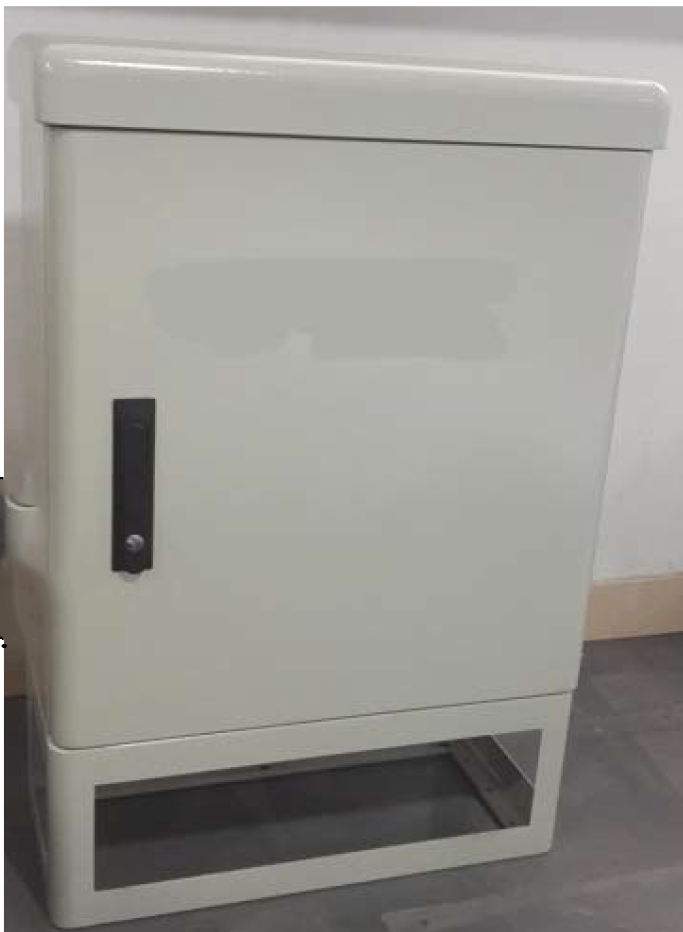

Distribution Box
● Dimension:600(L)*300(W)*1000(H)mm● Input: 2 channels induction coil
● Output: 1 Channel switch type 12VDC
●Communication port: RS485, 1000M Ethernet (Optional)
●Operating Temperature: -25℃ to 60℃
● Distribution box inside have a air dry circulation system which to monitor
under vehicle scanning part’s real time temperature, humidity, pressure.
Computer : Operation table (combine with monitor and computer)
1. Brand: Grantech (SYM76941 VGGA)
2. Processor : Intel (R) Pentium(R), CPU G3250@3.2GHz/3.19GHz
3. Memory (RAM): 4GB
4. Graphics :512M
5. Hard Disk: Hard Disk 500G
6. Dual LAN (at least one Intel Gigabit)
7. USB2.0 (Up to 4 pieces)
8. Monitor: 22’’ LED, resolution up to 1920*1080
9. Scene Video Record: 4 channels, Compression algorithm of scene video: H264
10. Operational system:Windows 7 (32 bit)
11. Console :Dimension:650(L)*610(W)*1220(H)mm, gross weight : 55kg
Optional :
* ALPR-Automatic License Plate Recognition software : via IP Camera captures license plate, ALPR
software processing and automatically presents license plate on screen
* Screen Video display: displays live video feed from overview camera on operator terminal screen.v
* To connect anti-collision system, barrier, etc
* To compatibly packing management solution
