Color Mobile Under Vehicle Surveillance System—Model RT 3000
Under vehicle inspection mirror, under vehicle inspection system Practical, easy to carry and convenient to use 30cm super big circular convex mirror Three wheels to ratation Suitable for body shop, school, check points, customs inspection.

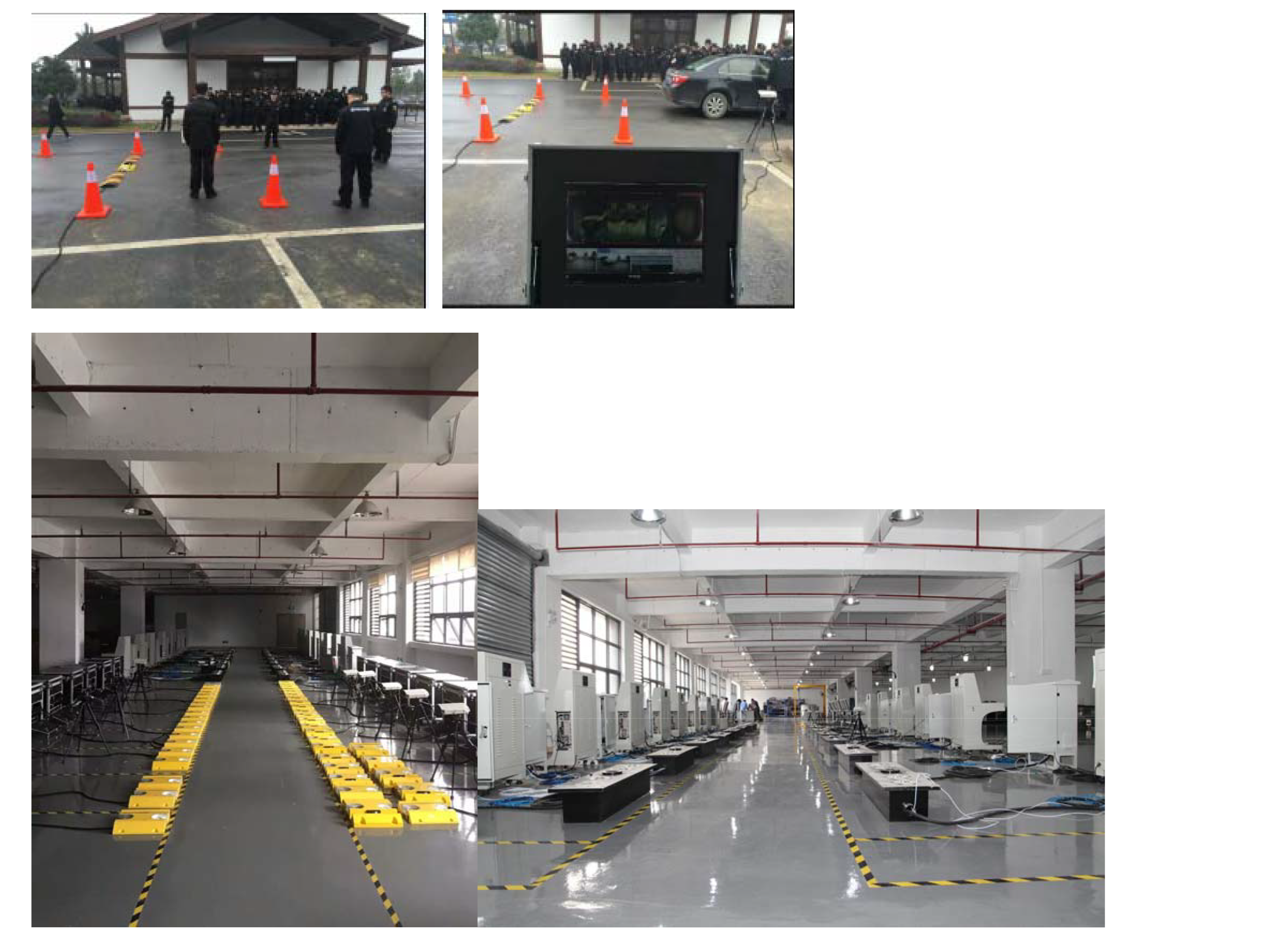

Vehicle security control at the entrance

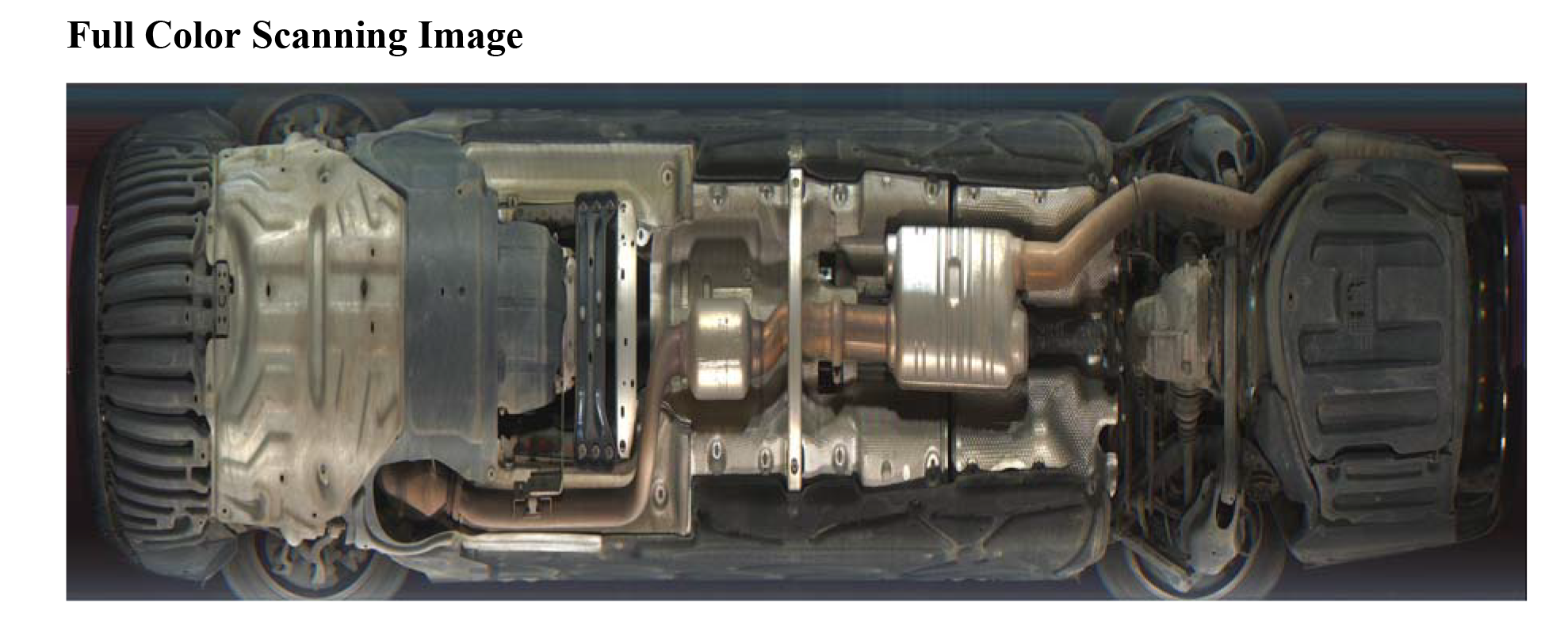

To see what’s hidden under the vehicle

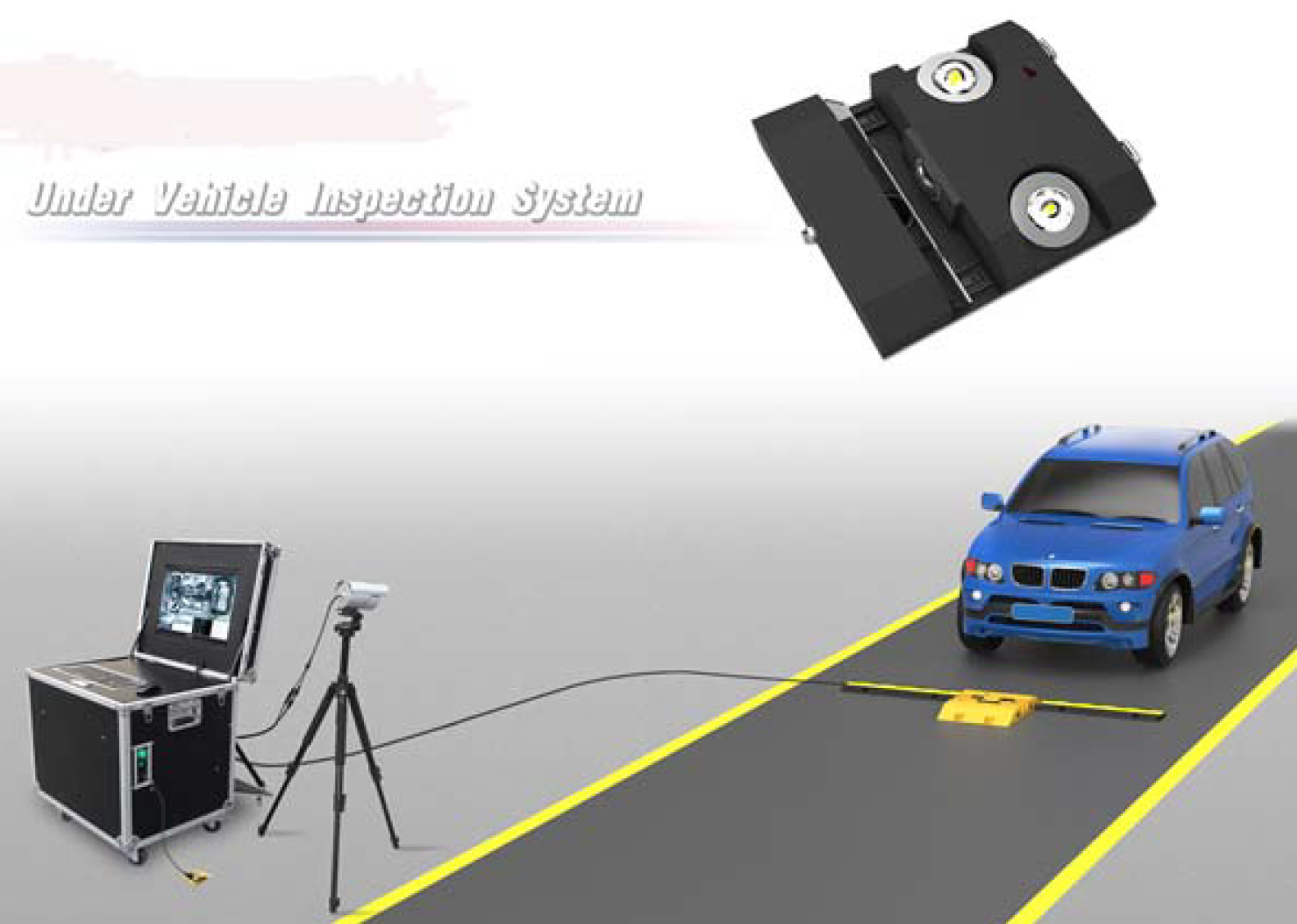

Under Vehicle Surveillance System mainly adopt to inspect the beneath part of a variety of vehicles. It can
quickly and accurately identify threats/ contraband/ smuggling of persons hiding at the bottom. AT3000
UVSS greatly improved vehicle safety inspection speed and accuracy, reduce investment in human
resources.
1.Auto digital line scan camera, with high-resolution and clarity of the image.
2. The complete image of under vehicle scanning, without any omissions, and the image is clear, complete,
no distortion, can be clearly observed that the object is not less than 2mm in diameter.
3.IP68 high protection grade, anti-pressure shock, adapt to any climatic environments.
4. Preparation of inspection processes to meet a variety of on-site needs.
5. Multiple scene image monitoring, recording function.
6. Multi-language user interface design.
7. Support image recognition and RFID technology for vehicle identification.
8. Strong scalability to easily achieve a variety of system linkage control. (E.g.: anti-collision system,
barrier, etc.).
1.Image resolution : 6000*2000
2. Check the width viewing angle: not less than 4 meters
3. Speed of vehicle: < 30km/h with ALPR (Automatic License Plate Recognition)
< 70km/h without ALPR (Automatic License Plate Recognition)
4. Effective field of view( FOV): less than 170°
5.FOV inspecting width: < 4 meters
6. LED Illumination : 160W
7.Weight capacity: 30T
8.Water-proof grade: IP68
9. Scanning device weight: 15KG
10. Scanning device Dimension:400(L)*340(W)*75(H)mm
11. Communication interface: RS232/RS422
12. Operating Temperature: -25℃ to 60℃
13. Storage temperature: -25℃ to +75℃
14. Operating voltage: 110-240V AC, 50-60HZ
1. Vertical Resolution: 2048 pixels
2. Camera view: > 170° & Pixels size: 14μm*14μm
3. Line rate(max)19kHz
4. ADC Resolution: 12 bit & Responsivity : 41V/uJ/cm2
5. Image format : color
6. Power Supply: 24VDC, 3A
7. Transfer interface/distance : Gigabit Ethernet/100m
8. Sealed unit to protect against heat, dust, water and vibration
9. Operating Temperature Range: -25 ℃ to +60 ℃

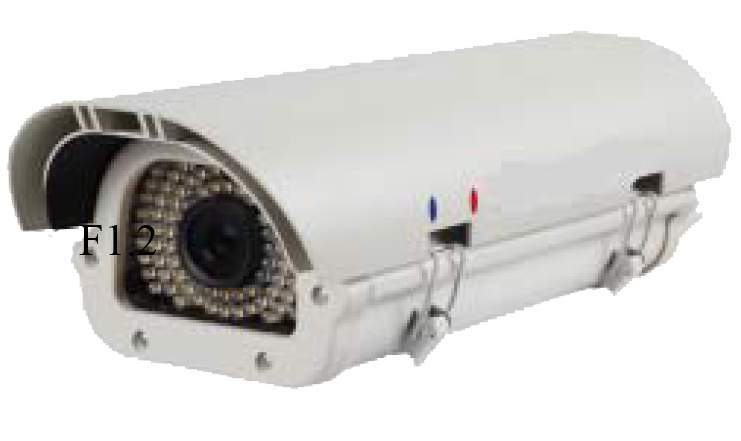

Vehicle Plate Number Capture Camera : Strong Light Inhibition+ Nigh vision, IP67 water proof and antifog
Specification:
1. The imaging element,1/2.8″SONY Exmor , 2.1 Megapixel
2. Resolution: Full HD/1080P(1920x1080) + Full D1
3. Minimum illumination: color：0.05Lux at F1.2 / special light condition：0.001Lux at F1.2
4. Compress standard: H.264 Main Profile @ Level 4.1 / Motion JPEG
5. Multibit Rate:FHD/1080P + Full D1 + CVBS
6. video flowing: multi H.264 and M-JPEG
7. Support 16:9 display format
8. 3 D Noise Reduction: Reduce every frame image noise so that the image appears more clearlyv
9.Horizontal resolution : >1000TVL(1920x1080 pixels)
10. 1-30M adjustable IR distance
11.Save: support PC, NVR, TF card
12.Network: network port: 1 unit RJ45, 10/100M; 1 unit BNC port, 1pc power input port
13. Network protocol: IPv4, TCP/IP, UDP, HTTP, DHCP, RTP/RTCP/RTSP, FTP, UPnP, DDNS, NTP, IGMP ICMP, etc
14. Operation temperature:-10℃—50℃
15. Dimension:（L）390mm×（W）140mm×（H）143mm
16. Power supply :DC12V
17. Lens: f= f=6mm/8mm/12mm 3MP
● Brand: Grantech (UFO6377H-SP1-953)
● CPU: Intel (R) Pentium(R), CPU G3250@3.2GHz/3.19GHz
● Memory: 2G( optional 4G); Hard Disk: SATA2 Hard Disk 500G
● Graphics: Inter(R) Gen 5.0 Integrated Graphics Engine
●Dual LAN (At least one Intel Gigabit)
Optional :
* ALPR (Automatic License Plate Recognition) software
* To connect anti-collision system, barrier, etc
* To compatibly packing management solution
